Suction Units

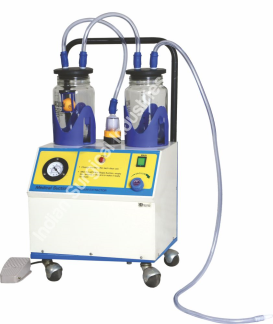

Electric Vacuum Extractor, Deluxe

Description Electric Vacuum Extractor, Deluxe A low vacuum electric suction unit Body constructed from M.S. Sheet and finished in epoxy powder coating fitted with Handle Mounted on 4 swivel D.C.outlet socket on side for connecting foot pedal fitted with bactrial filter, Vacuum Gauge, ON/OFF Switch cum indicator Vacuum Control Knob Supplied with overflow cut-off device fited in one bottle Supplied with any 3 metal suction cups in dia. Of 40mm, 50mm, 60mm or 70mm Supplied with suction tubing. Technical Specification: Capacity :600mmHg ± 10 having a flow rate of approx. 18Lit/min Double jar :2 x 2 Lit graduated polycarbonate with rubber lids Vacuum Gauge : 50mm dia;0-760mmHg Pump :Oil immersed vacuum pump operates on 220-240V 50Hz. A.C. mains Optional accessories on extra cost Silicon suction cups in dia. Of 50mm, 60mm & 70mm. Glass jars instead of polycarbonate

1 available models
Suction Units business section
Quote only pricing on request
  • Electric Vacuum Extractor, Deluxe
  • A low vacuum electric suction unit
  • Body constructed from M.S. Sheet and finished in epoxy powder coating fitted with Handle
  • Mounted on 4 swivel
  • D.C.outlet socket on side for connecting foot pedal
  • fitted with bactrial filter, Vacuum Gauge, ON/OFF Switch cum indicator Vacuum Control Knob
Approved Product Views4 images
Electric Vacuum Extractor, Deluxe

Variant Matrix

Compare the model lineup at a glance.

This table surfaces the shared decision columns for the family so procurement teams can compare capacities, sizes, and configuration differences quickly.

Model
SEV-25

Model Details

Switch between models for specification-level review.

Each model keeps its own attributes, supporting notes, and approved imagery under the same family page.

Model

SEV-25

Electric Vacuum Extractor, Deluxe
Model SEV-25

Supporting details

  • Description
  • Electric Vacuum Extractor, Deluxe
  • A low vacuum electric suction unit
  • Body constructed from M.S. Sheet and finished in epoxy powder coating fitted with Handle
  • Mounted on 4 swivel
  • D.C.outlet socket on side for connecting foot pedal
  • fitted with bactrial filter, Vacuum Gauge, ON/OFF Switch cum indicator Vacuum Control Knob
  • Supplied with overflow cut-off device fited in one bottle
  • Supplied with any 3 metal suction cups in dia. Of 40mm, 50mm, 60mm or 70mm
  • Supplied with suction tubing.
  • Technical Specification:
  • Capacity :600mmHg ± 10 having a flow rate of approx. 18Lit/min
  • Double jar :2 x 2 Lit graduated polycarbonate with rubber lids
  • Vacuum Gauge : 50mm dia;0-760mmHg
  • Pump :Oil immersed vacuum pump
  • operates on 220-240V 50Hz. A.C. mains
  • Optional accessories on extra cost
  • Silicon suction cups in dia. Of 50mm, 60mm & 70mm.
  • Glass jars instead of polycarbonate
