Suction Machines

Suction Apparatus

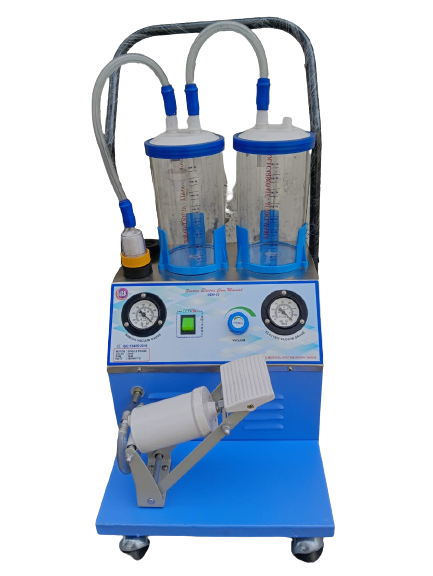

A versatile trolley model on 4 swivel castors suitable for general suction procedures Suction Apparatus 0.25HP Main body constructed from M.S.sheet with S.S. top fitted with Push Handle D.C. outlet socket on side for connecting foot pedal Fitted with vacuum gauge, ON/OFF switch cum indicator, Vacuum control knob Overflow cut-off device fitted in one bottle Supplied with suction tubing. Technical Specifications: Capacity : -760mmHg ± 10, having a flow rate of approx.22-25 Lit./min Double Jar : 2 x 1.5 Lit. graduated glass with rubber lids Vacuum Gauge: 0-760mmHg Pump: Oil immersed vacuum pump operates on 220-240V 50Hz. A.C. mains Optional accessories on extra cost Bacterial Filter Polycarbonate jars instead of glass Also available in all S.S.body Foot Switch Suction Canula (Metal) Description Suction Electric cum Manual A general suction unit Body constructed form M.S. sheet and finished in epoxy powder coating, fitted wirh Push Handle Mounted on 4 swivel castors D.C. outlet socket on side form connecting foot pedal Panel fitted with bactrial filter, Vacuum Gauge, ON/OFF Switch cum indicator Vacuum Control Knob Overflow cut-offdevice fitted in one bottle Technical Specification: Vacuum Gauge : type 0-760mmHg Pump:Double oil immersed vacuum rotary pump Foot Pump :Heavy Duty Aluminim Body can be made in all stainless steel

5 available models

Suction Machines product category

Quote on request pricing shared directly
