Autoclaves

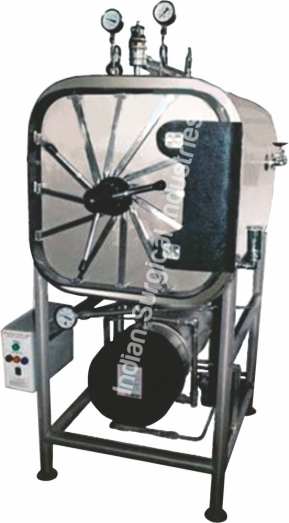

Autoclave Triple Wall Horizontal Rectangular

The sterilizer is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through. All models work on principle of downward displacement of air which is most economical method of obtainig sterilization. Rectangular Horizontal Autoclave Triple Wall

4 available models
Autoclaves business section
Quote only pricing on request
  • Rectangular Horizontal Autoclave Triple Wall
Approved Product Views5 images
Autoclave Triple Wall Horizontal Rectangular

Variant Matrix

Compare the model lineup at a glance.

This table surfaces the shared decision columns for the family so procurement teams can compare capacities, sizes, and configuration differences quickly.

ModelCapacitySizeVariants1size in inches mmdetailed description
AHR-190 190 Litres450X450X900Electrical19450X450X900Triple Walled with Steam Storage, Inner Chamber, Outer Wall,Lid and Ring are made of S.S 304 Grade material. with Leak proof argon welding. Autoclave is mounted on mild steel frame with ground leveling screwed flanges. Equipped With: The Pressure Control Device , Digital Temperature Controller with Digital Timer & Alarm Low Water Cut Off Device, Multiport Valve etc. is incorporated. Operating Temp & Pressure:-Sterilizing Temp: 121° to 134° C,Power: Suitable to Operate on 440 V, 3Ph,50 Hz, AC Supply. Optional accessories: Fully automatic model with solenoid valves.Optional features on extra cost: 1] Fully automatic sterilization cycle having feature of auto purge and axhaust installed with three solenoid valves. 2] Vacuum pump.
AHR-330 330 Litres600X600X900ElectricalNot listed600X600X900Triple Walled with Steam Storage, Inner Chamber, Outer Wall,Lid and Ring are made of S.S 304 Grade material. with Leak proof argon welding. Autoclave is mounted on mild steel frame with ground leveling screwed flanges. Equipped With: The Pressure Control Device , Digital Temperature Controller with Digital Timer & Alarm Low Water Cut Off Device, Multiport Valve etc. is incorporated. Operating Temp & Pressure:-Sterilizing Temp: 121° to 134° C,Power: Suitable to Operate on 440 V, 3Ph,50 Hz, AC Supply. Optional accessories: Fully automatic model with solenoid valves.Optional features on extra cost: 1] Fully automatic sterilization cycle having feature of auto purge and axhaust installed with three solenoid valves. 2] Vacuum pump.
AHR-450 450 Litres600X600X1200ElectricalNot listed600X600X1200Triple Walled with Steam Storage, Inner Chamber, Outer Wall,Lid and Ring are made of S.S 304 Grade material. with Leak proof argon welding. Autoclave is mounted on mild steel frame with ground leveling screwed flanges. Equipped With: The Pressure Control Device , Digital Temperature Controller with Digital Timer & Alarm Low Water Cut Off Device, Multiport Valve etc. is incorporated. Operating Temp & Pressure:-Sterilizing Temp: 121° to 134° C,Power: Suitable to Operate on 440 V, 3Ph,50 Hz, AC Supply. Optional accessories: Fully automatic model with solenoid valves.Optional features on extra cost: 1] Fully automatic sterilization cycle having feature of auto purge and axhaust installed with three solenoid valves. 2] Vacuum pump.
AHR-810 810 Litres600X900X1500ElectricalNot listed600X900X1500Triple Walled with Steam Storage, Inner Chamber, Outer Wall,Lid and Ring are made of S.S 304 Grade material. with Leak proof argon welding. Autoclave is mounted on mild steel frame with ground leveling screwed flanges. Equipped With: The Pressure Control Device , Digital Temperature Controller with Digital Timer & Alarm Low Water Cut Off Device, Multiport Valve etc. is incorporated. Operating Temp & Pressure:-Sterilizing Temp: 121° to 134° C,Power: Suitable to Operate on 440 V, 3Ph,50 Hz, AC Supply. Optional accessories: Fully automatic model with solenoid valves.Optional features on extra cost: 1] Fully automatic sterilization cycle having feature of auto purge and axhaust installed with three solenoid valves. 2] Vacuum pump.

Model Details

Switch between models for specification-level review.

Each model keeps its own attributes, supporting notes, and approved imagery under the same family page.

Model

AHR-190

Autoclave Triple Wall Horizontal Rectangular
Model AHR-190
Capacity 190 Litres
Size 450X450X900
Variants Electrical
1 19
size in inches mm 450X450X900
detailed description Triple Walled with Steam Storage, Inner Chamber, Outer Wall,Lid and Ring are made of S.S 304 Grade material. with Leak proof argon welding. Autoclave is mounted on mild steel frame with ground leveling screwed flanges. Equipped With: The Pressure Control Device , Digital Temperature Controller with Digital Timer & Alarm Low Water Cut Off Device, Multiport Valve etc. is incorporated. Operating Temp & Pressure:-Sterilizing Temp: 121° to 134° C,Power: Suitable to Operate on 440 V, 3Ph,50 Hz, AC Supply. Optional accessories: Fully automatic model with solenoid valves.Optional features on extra cost: 1] Fully automatic sterilization cycle having feature of auto purge and axhaust installed with three solenoid valves. 2] Vacuum pump.

Supporting details

  • The sterilizer is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through. All models work on principle of downward displacement of air which is most economical method of obtainig sterilization.
  • Rectangular Horizontal Autoclave Triple Wall
